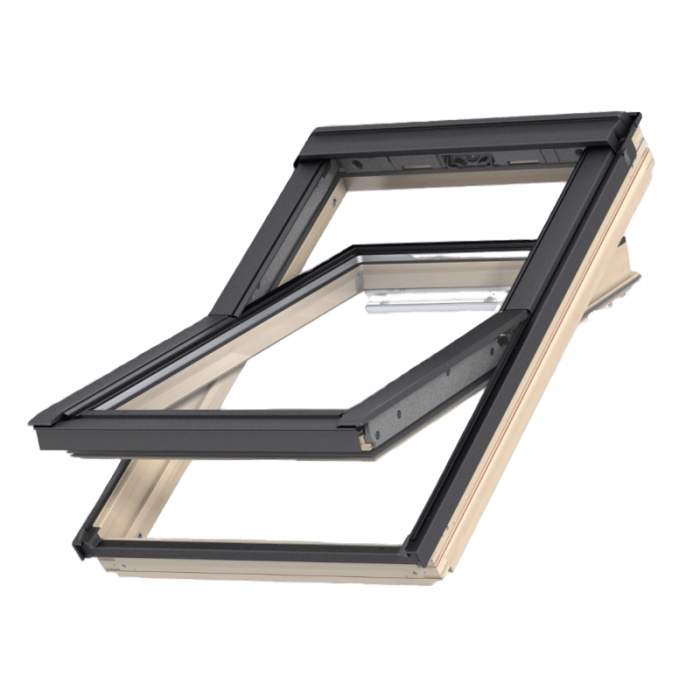

This centre pivot roof window is a classic and versatile design manufactured in high quality natural pine.  It is suitable for installation into roof pitches between 15° and 90°.

This is a double glazed window with standard toughened glass and has a Uw value of 1.3 W/m2K

ADVANTAGES:

• High quality pivot hinges are designed with innovative technology ensuring stability and maintenance free
• The unique brushed aluminium ventilation flap makes it possible to let in fresh even with the window securely closed. The design lets you see whether the flap is open or closed from any angle
• Pre-installed Pick&Click! brackets make the installation of blinds a safe and easy task
• ThermoTechnologyTM

BENEFITS:

• Ventilation bar with dust and insect filter – allows fresh air to enter the room while the window is securely closed
• Friction springs – allows easy operation of window
• Sash rotates 180° from inside – allows easy and convenient cleaning
• Barrel bolt – allows the window to be locked in two positions at 180° for secure cleaning of the exterior pane internally and at 5° to allow extra ventilation

LACQUERED NATURAL PINE FINISH

• Ideal for traditional interior
• High quality natural pine
• Protective triple coat clear lacquer helps to preserve the timber of the window

GLAZING 1051

• Energy efficient 24mm double glazing
• 4mm float inner pane with low-E coating
• 4mm toughened outer pane
• 16mm gap between panes
• Ug value of 1.1 W/m2K

OPERATION

The window is operated manually using the full width control bar on the ventilation flap along the top of the sash.

MAINTENANCE

The pane should be cleaned with a soft, clean, lint-free cloth or non-abrasive sponge. The rest of the window can be cleaned with ordinary household cleaners. The filter can be removed and either washed or replaced.

GUARANTEE

10 Years VELUX guarantee on windows and flashing kits.

20 Years VELUX guarantee on glass
